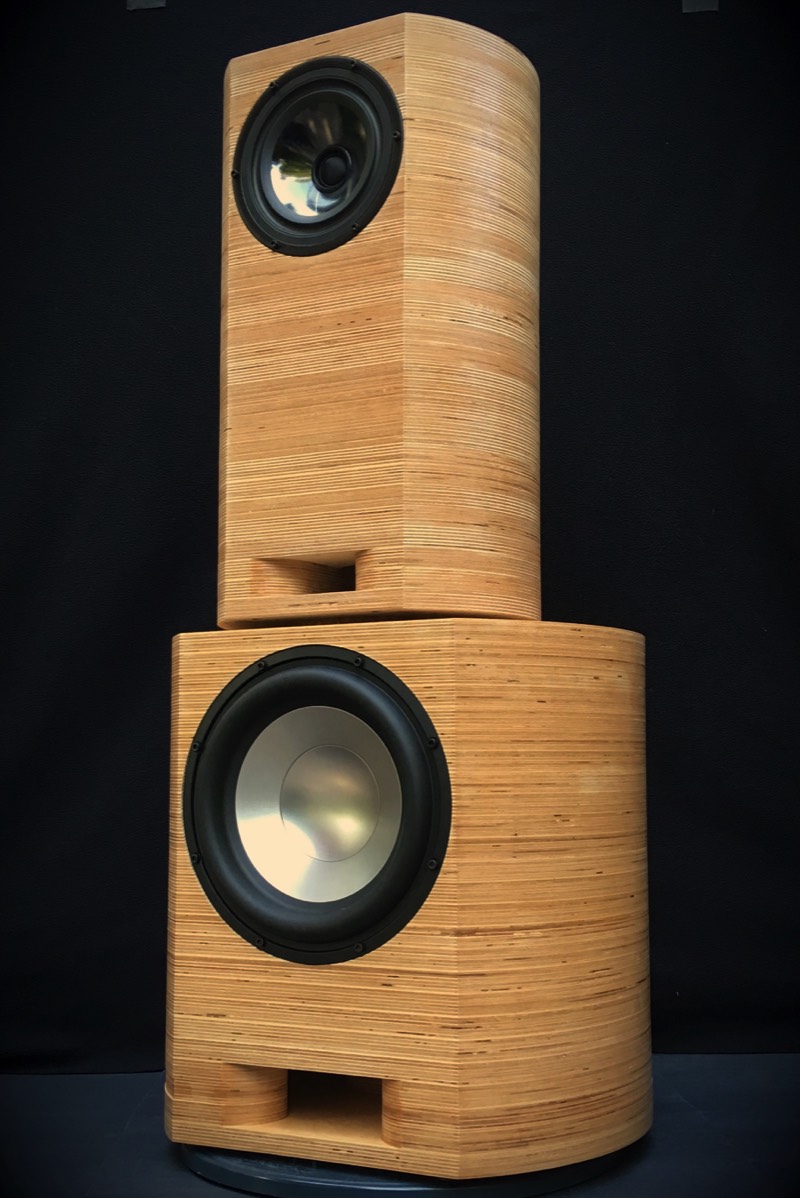

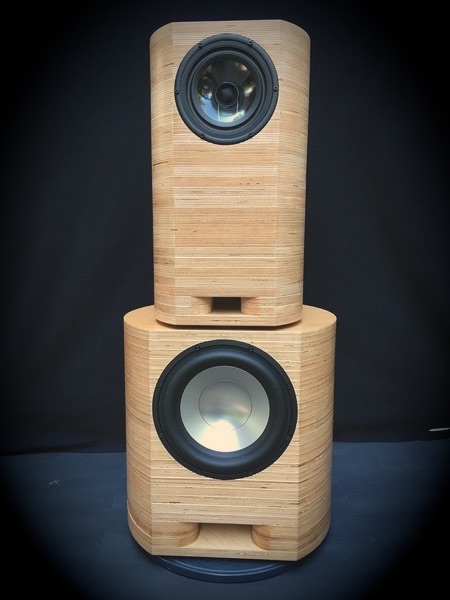

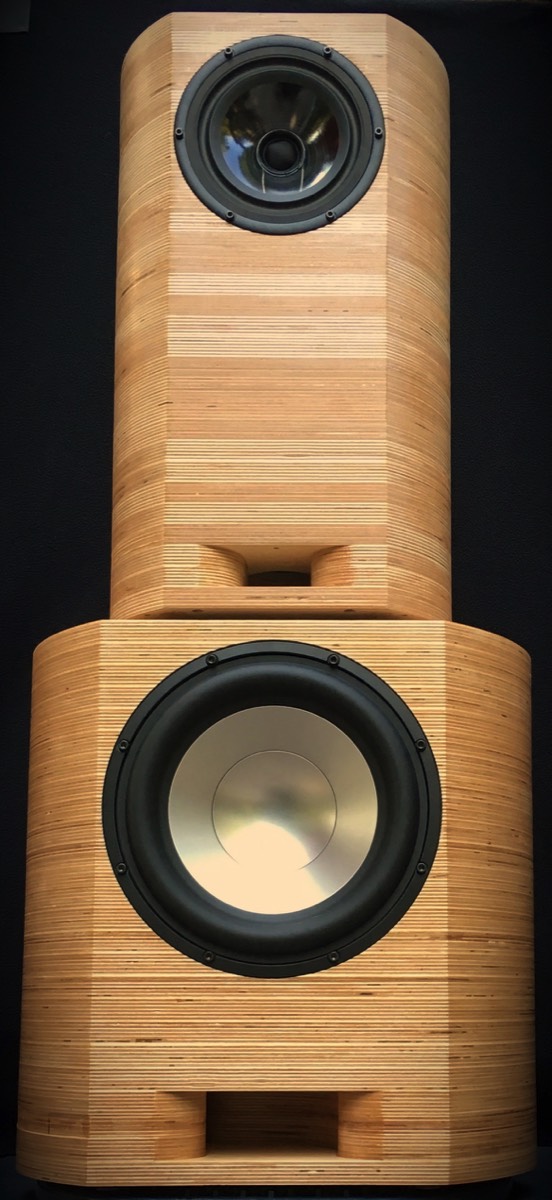

The Mayfly MF-301 is a high performance, no compromise, bass module. It is the perfect complement to the MF201A for those who what the ultimate in music reproduction. The MF-301 uses a best-in-class aluminum cone woofer and tuned to extend to 18Hz. Note: A bi-amplifier arrangement with a user supplied active crossover is required.
Extraordinary realism. Exceptional soundstage. Stunning Bass response. We don't make a finer loudspeaker.
Extraordinary realism. Exceptional soundstage. Stunning Bass response. We don't make a finer loudspeaker.
Science
- Extensive acoustic modelling.
- Separate enclosures for Bass and Mid / Treble.
- Reflection and diffraction eliminating circular exterior.
- Bass ports built into cabinet walls.
Craft
- Hand laminated birch cabinets.
- French polish finish.
- Select hardwood tops.
Technology
- Best in class aluminum cone woofer.
- Real-world performance measurements.
- CNC cut cabinet laminations.
360 Degree Viewer
Specifications MF-301 bass module
Frequency Response
18Hz to 1kHz.
Impedance
Four Ohms.
Power handling
400 Watts.
Driver Configuration
240 mm aluminum cone.
rubber surround.
56 mm voice coil.
2.34 kg magnet.
56 mm woofer excursion.
rubber surround.
56 mm voice coil.
2.34 kg magnet.
56 mm woofer excursion.
Terminals
Gold plated binding posts.
Suggested Active Crossover Point
100Hz.
Cabinet construction

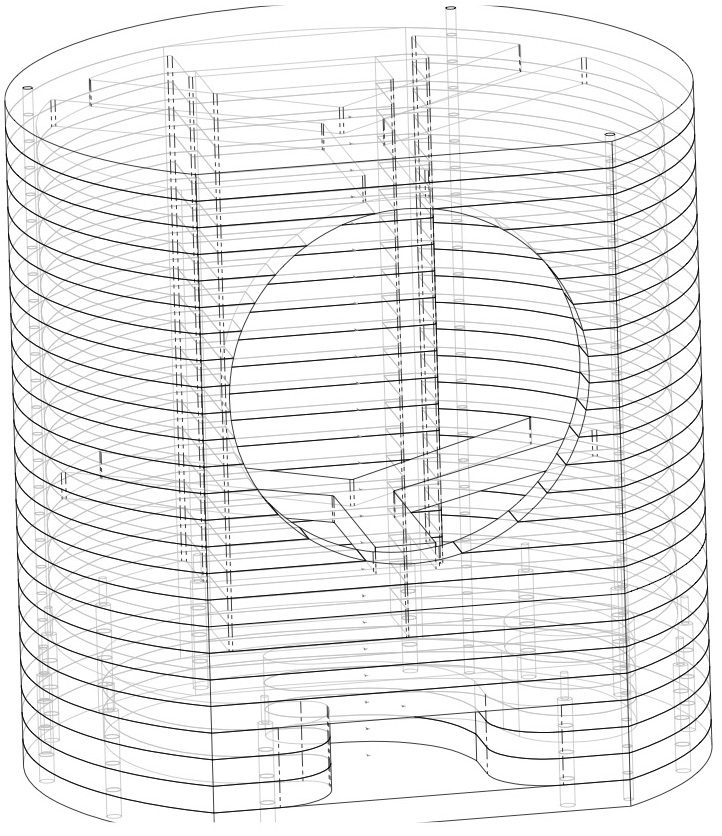

Laminated circular cabinet with internal bass ports.
Dimensions
- Overall Height
- Overall Width
- Overall Depth
- Overall Weight
450 mm
450 mm
400 mm
26 kg
Specifications may change without notice. Patent Pending.
